—— LPG Truck

HOWO 4x2 10 cbm LPG Truck


Brand :SINOTRUCK HOWO

Product origin :Shandong, China

Delivery time :20-30days

Supply capacity :100 sets/month

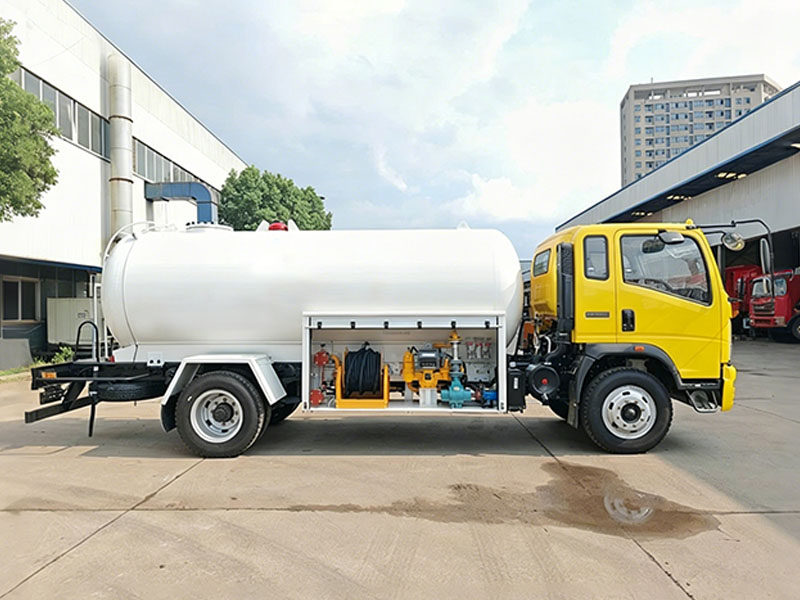

HOWO 4x2 10 cbm LPG Truck

HOWO 4x2 10 cbm LPG Truck

Product Overview


The ZW GROUP Sinotruk HOWO 4x2 10 cbm LPG truck is engineered for the safe transport and metered dispensing of LPG, propane, and butane. Integrating a compact 6-wheel chassis with a 10 cubic meter high-pressure vessel, this mobile bobtail is perfect for urban cylinder refilling, domestic delivery, and remote station replenishment. Its agile 4x2 drivetrain features a tight turning circle, allowing drivers to easily navigate narrow city streets and residential areas where larger bulk tankers cannot fit.


Built from heavy-duty Q345R high-tensile steel  the certified tank undergoes rigorous radiographic and hydraulic testing to withstand 1.61 MPa design pressure. Powered by a fuel-efficient 160HP diesel engine, the unit features a high-performance PTO-driven Corken or Blackmer LPG pump. For precise and secure operations, it integrates an electronic English-display dispenser, a 15-meter automatic rewind hose, dual emergency shut-off valves , and built-in safety relief systems.

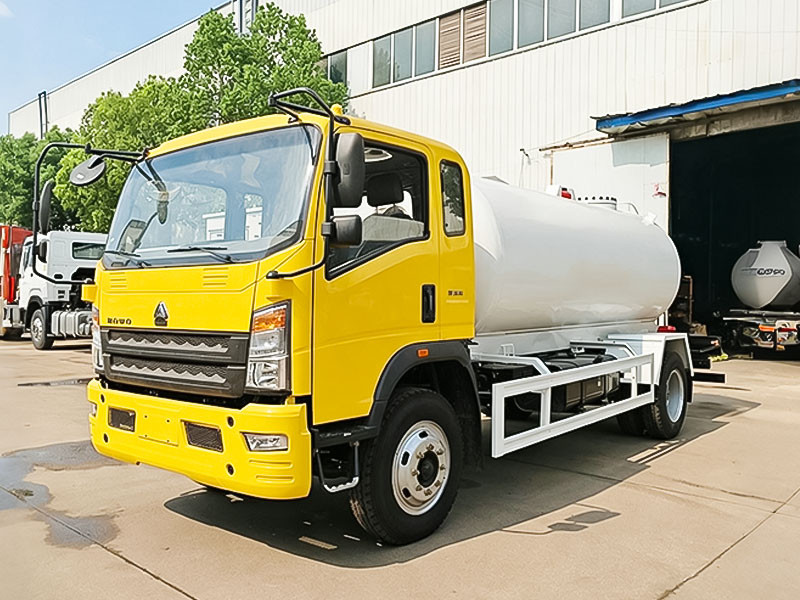

HOWO 4X2 LPG TRUCK


Technical Specifications


Technical ParameterSpecification / Data Sheets
Overall Dimensions7,800x 2,500x 3,250 mm
Driving ModelLHD/RHD
Gross Vehicle Weight16,000 kg
Payload Capacity

5,000 kg

Wheelbase4,700 mm
Front Axle/Rear Axle3,600 kg/10,500 kg
EngineYuchai YC4E160-33,160 HP,Euro Ill
LPG Tank Volume10,000 litres
Tank MaterialQ345R steel
Tank Diameter1,800 mm
Tank Thickness10 mm
Working Pressure1.61 MPa
Design Pressure1.71 MPa
Test Pressure2.21 MPa
Filling MediumPropane / Butane (LPG)
LPG PumpCORKEN Z2000GAEE,PTO-driven
LPG Flow MeterTSC-50 with ticket printer
Filling Hose15 metres, retractable with REGO adapter
Emergency Shut-Off Valves2 pcs
Level GaugeFloat ball type (YWJ-25)
Safety ValveBuilt-in,A412F-25-16
Static Conductive Tape1 pc
Fire Extinguisher Holder1 set

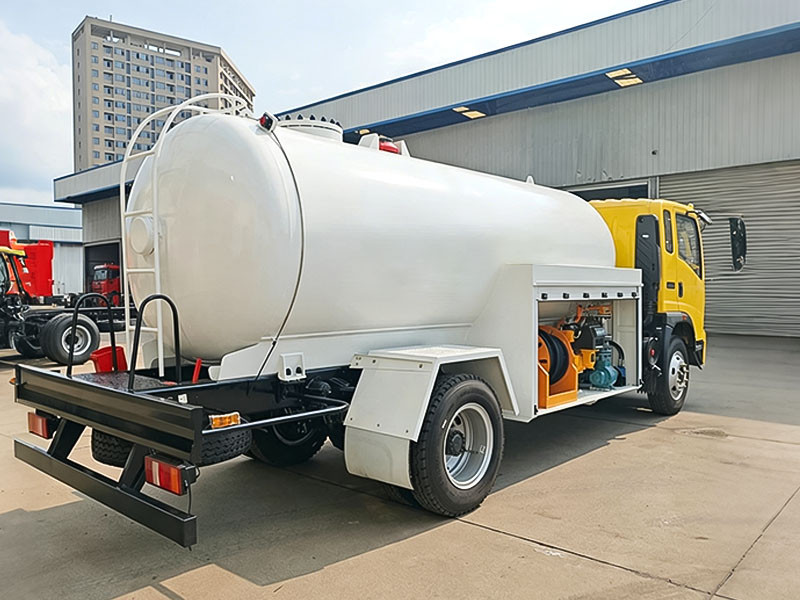

HOWO 4X2 LPG TRUCK-3


Why Partner with ZW GROUP?


As a global specialty vehicle supplier, ZW GROUP balances technical expertise with reliable after-sales service. Every HOWO 4x2 10 cbm propane gas tanker truck leaves our assembly workshops fully tested, coated with premium anti-corrosion epoxy primers, and accompanied by operational manuals and certifications. We supply cost-effective logistics units built for long-term commercial reliability across Africa, Southeast Asia, Central Asia, and Latin American energy markets.

imgi_40_1778566330912707101532237824

—— FAQ

A:

We export our trucks and trailers to Africa, Southeast Asia, the Middle East, South America, and other international markets. Our products are widely used in countries such as Nigeria, Ghana, Tanzania, Zambia, Kenya, Mozambique, and Congo.

A:

Yes. We support customization services including truck color, logo, tank capacity, left-hand drive or right-hand drive, optional equipment, axle configuration, and other special requirements.

A:

Normally, the production time is around 20 to 35 working days after receiving the deposit. The exact delivery time depends on the truck model and customization requirements.

A:

Of course. Customers are welcome to visit our factory in China. We can also provide factory videos, production photos, and online video inspections.

A:

Yes. Our exported trucks are suitable for high-temperature and harsh working environments commonly found in Africa and the Middle East.

A:

Yes. We can provide original spare parts and wearing parts for all exported trucks and trailers. Spare parts support is available for long-term cooperation customers.
