ISUZU 4x2 10 CBM Street Sweeper Truck


Brand :ISUZU

Product origin :Shandong, China

Delivery time :20-30days

Supply capacity :100 sets/month

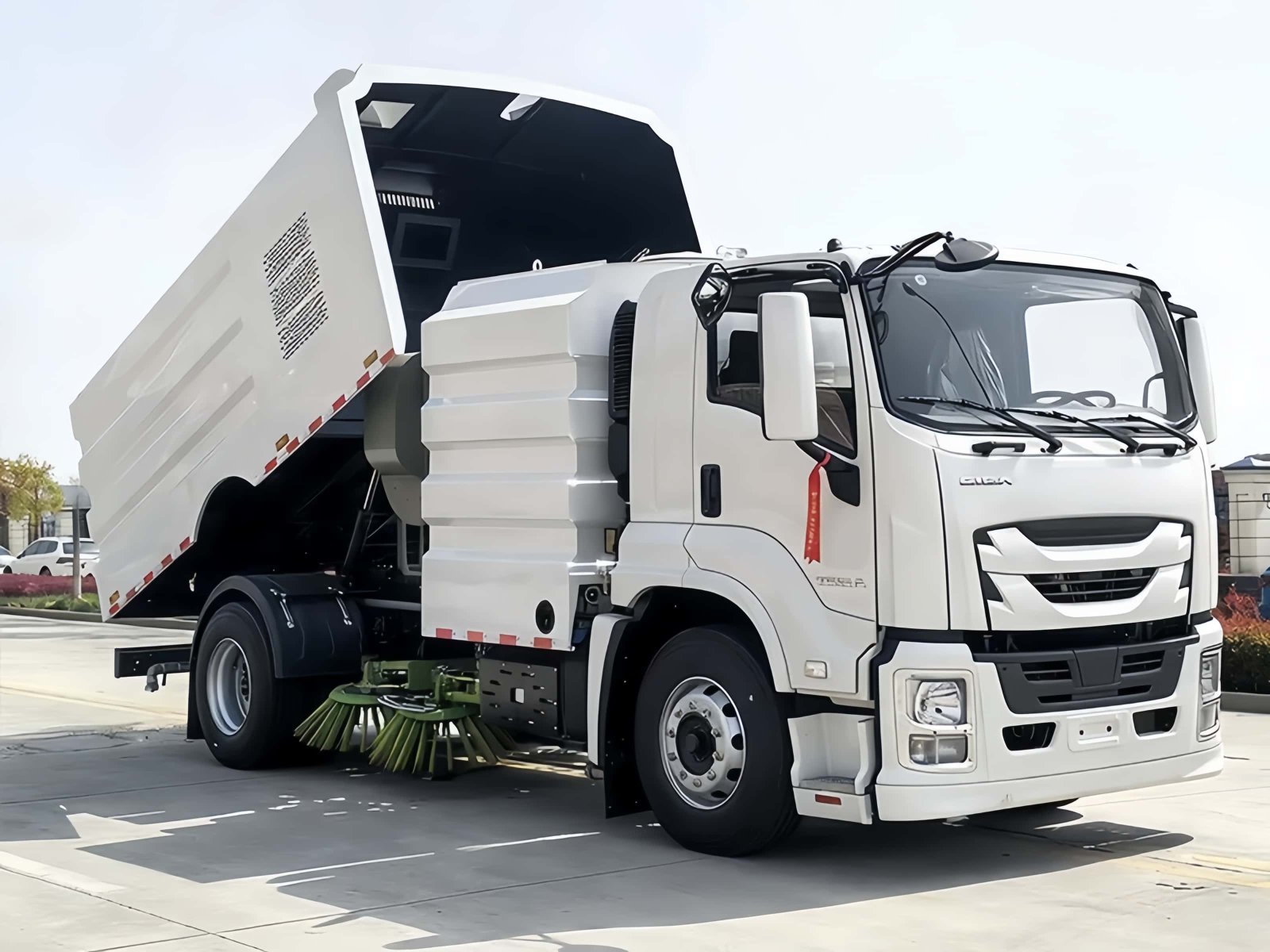

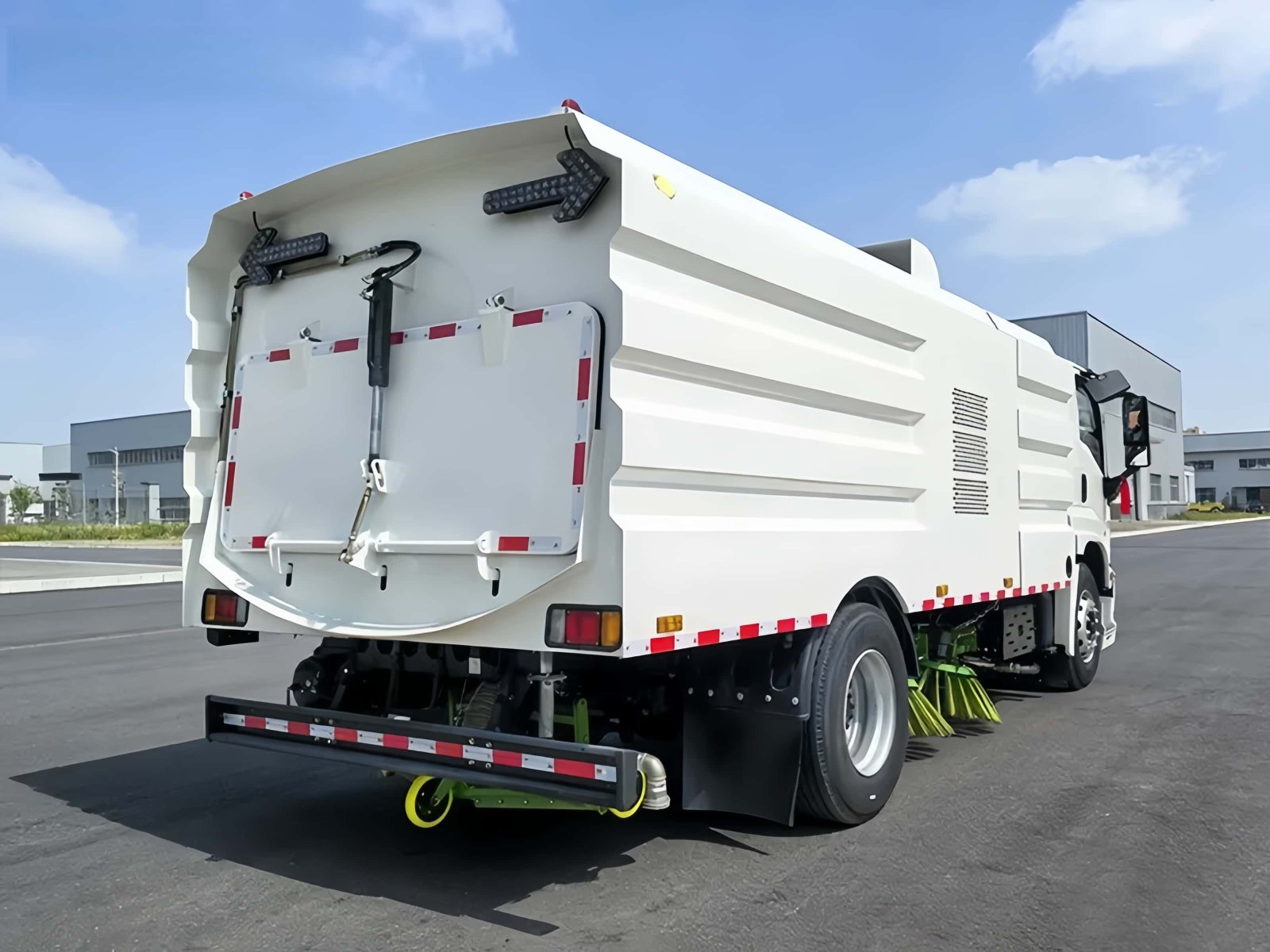

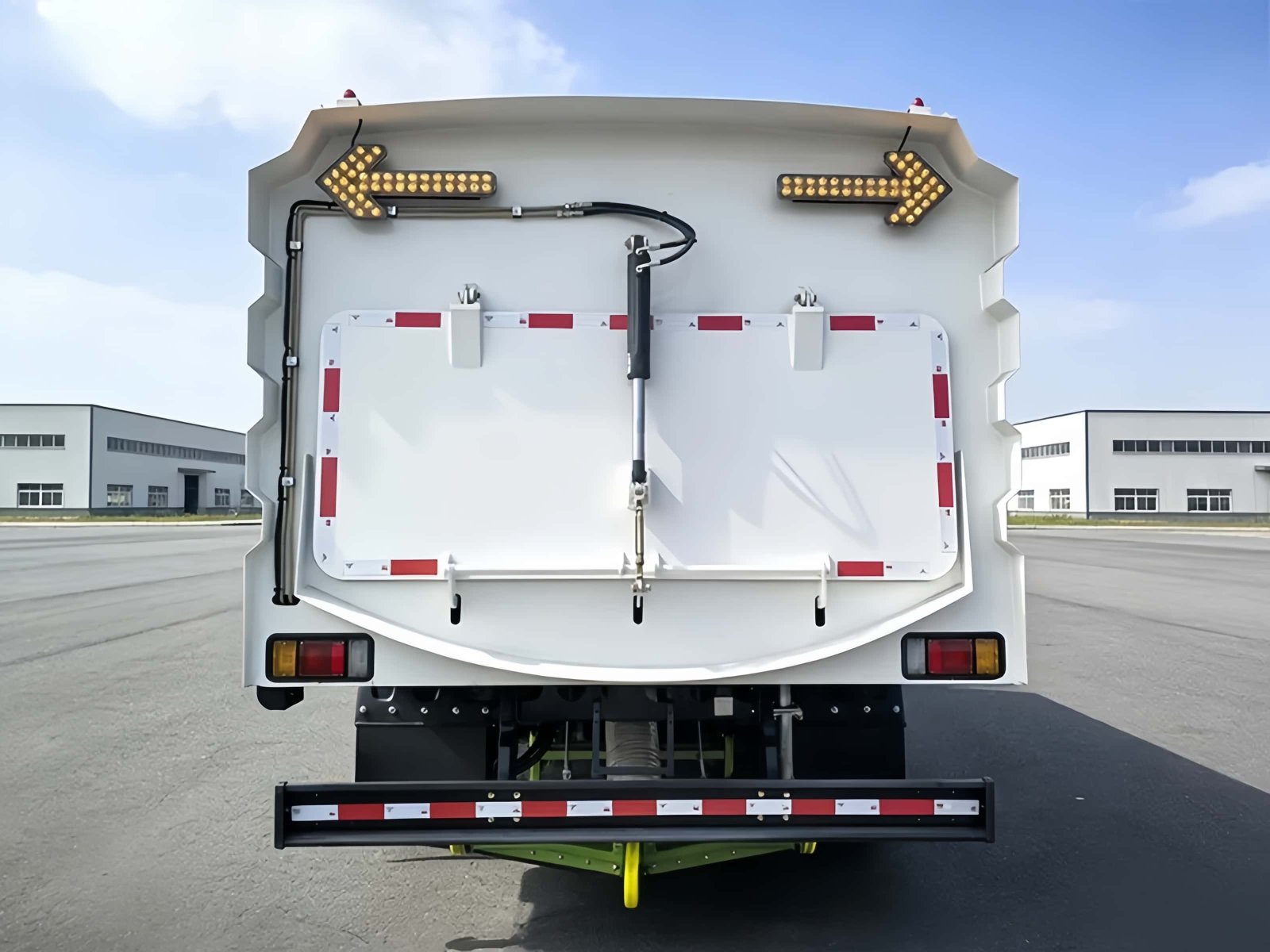

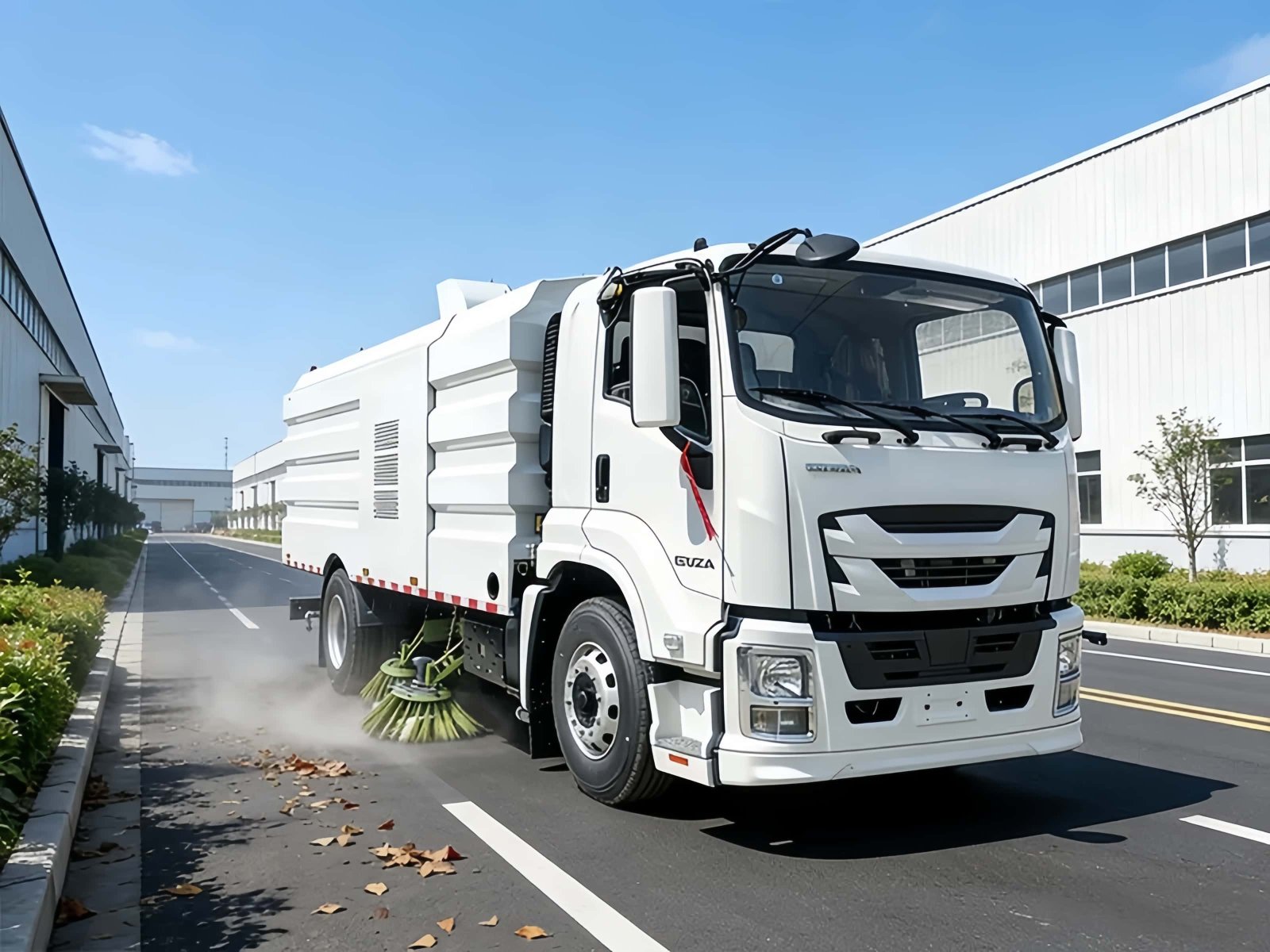

ISUZU 4x2 10 CBM Street Sweeper Truck

ISUZU 4x2 10 CBM Street Sweeper Truck

Product Overview


The ZW GROUP Isuzu 4x2 10 CBM road sweeper is a high-efficiency sanitation vehicle designed for urban cleaning and industrial dust control. Powered by a 205HP Isuzu 4HK1 Euro VI engine with a 6-speed manual transmission, it delivers strong low-speed torque and excellent maneuverability for city streets.


It features a dual-compartment stainless steel tank with a 3,000L clean water tank and a 7,000L debris hopper for durability and corrosion resistance. Equipped with dual side brushes and a fully floating suction nozzle, it achieves up to 60,000 m²/h sweeping efficiency for dust, gravel, and leaves.


With one-touch intelligent cab controls for sweeping, spraying, and dumping, plus night lighting and safety systems, it provides a reliable and efficient solution for municipal and commercial sanitation work.


ISUZU Road Sweeper Truck


Technical Specifications & Parameters


Parameter / Component

Detailed Specification

Primary Vehicle Designation

ISUZU 4x2 10 CBM Street Sweeper Truck

Manufacturer / Brand

ZW GROUP

Chassis / Drive Type

ISUZU 4x2Rigid Frame

Gross Vehicle Weight18000 kg
Curb Weight9530 kg
Maximum Speed100 km/h
Overall Dimensions9260*2500*3100mm

Engine Model & Output

4HK1-TCG60 (Euro 6) / 205 HP

Fuel Type

Diesel

Tire No.6+1 spare tire
Tire Specification4500mm
Steering WheelLHD/RHD

Wheelbase

4,500 mm

Total Tank Capacity

10 CBM

Volumetric Split

3,000L Clean Water + 7,000L Waste Hopper

Material of The Water TankStainless steel
Washing width2500 mm
Water pump flow rate154 L/min

Sweeping Elements

88 Brushes + Dual Hydraulic Suction Ports

Max sweeping width3.5m
Sweeping speed3-20 km/h

Maximum Sweeping Output

60,000 ㎡/h

Garbage tank door max. discharge angle≥50°

Hydraulic Safety Architecture

Mechanical Locks & Overload Relief Valves

Discharge Control

Cab-Controlled Tilting Cylinder (>4°)


Partner with ZW GROUP for Your Fleet Requirements

As a trusted global supplier of specialized municipal and environmental sanitation machinery, ZW GROUP delivers factory-direct engineering excellence. Contact our international sales department today for detailed technical drawings, custom optional equipment configurations, and highly competitive wholesale pricing tailored to your municipal tender specifications.
