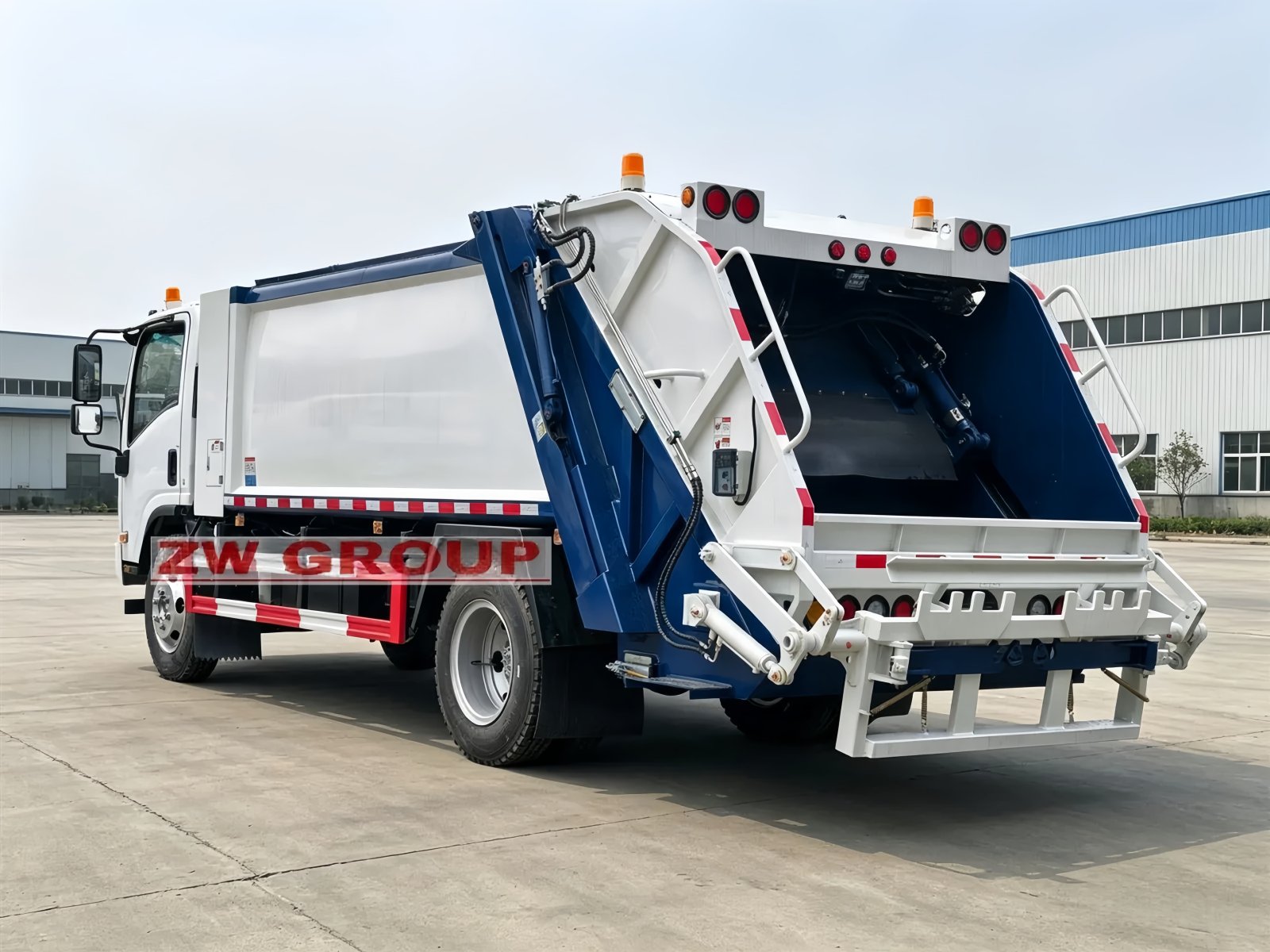

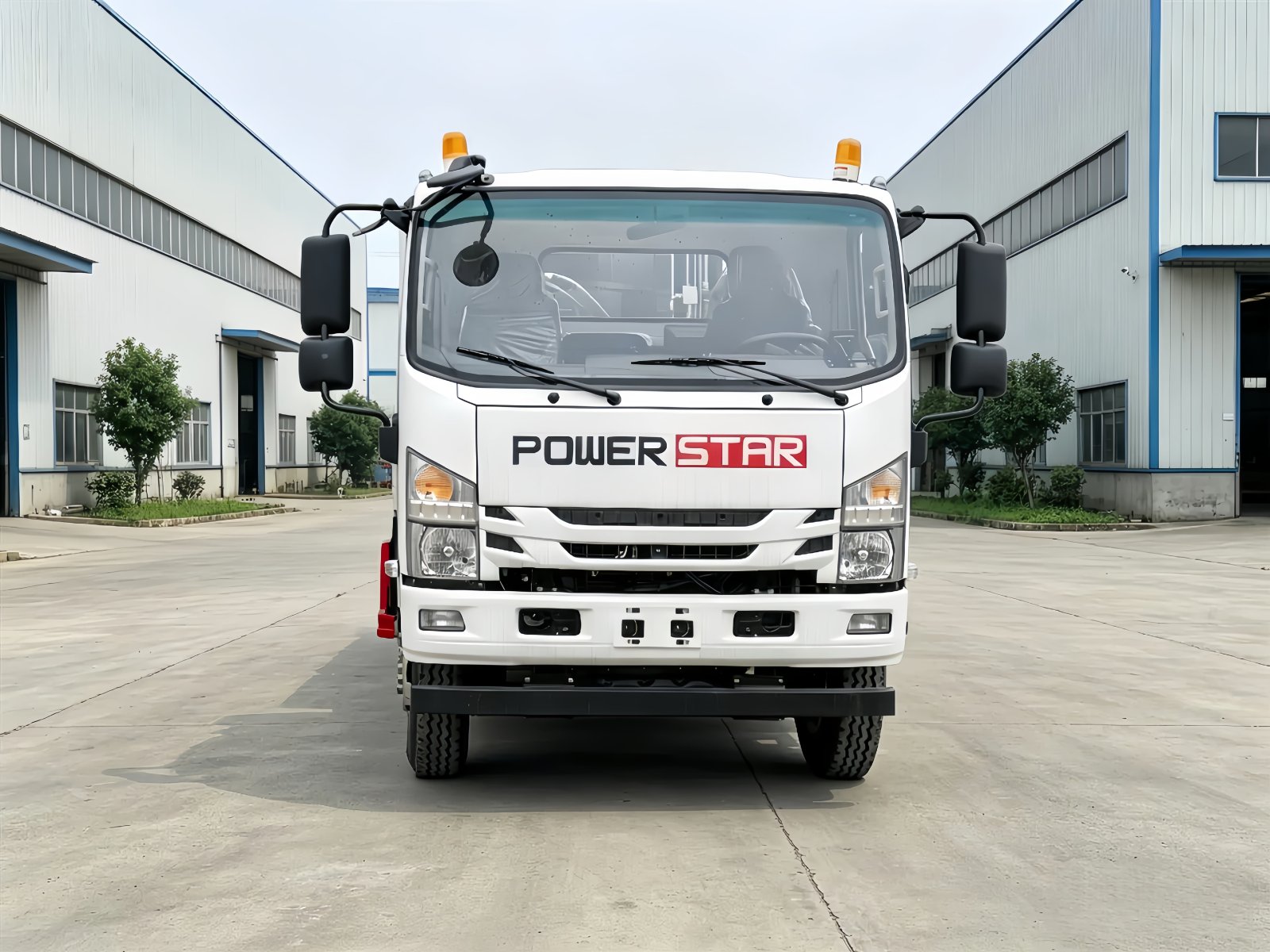

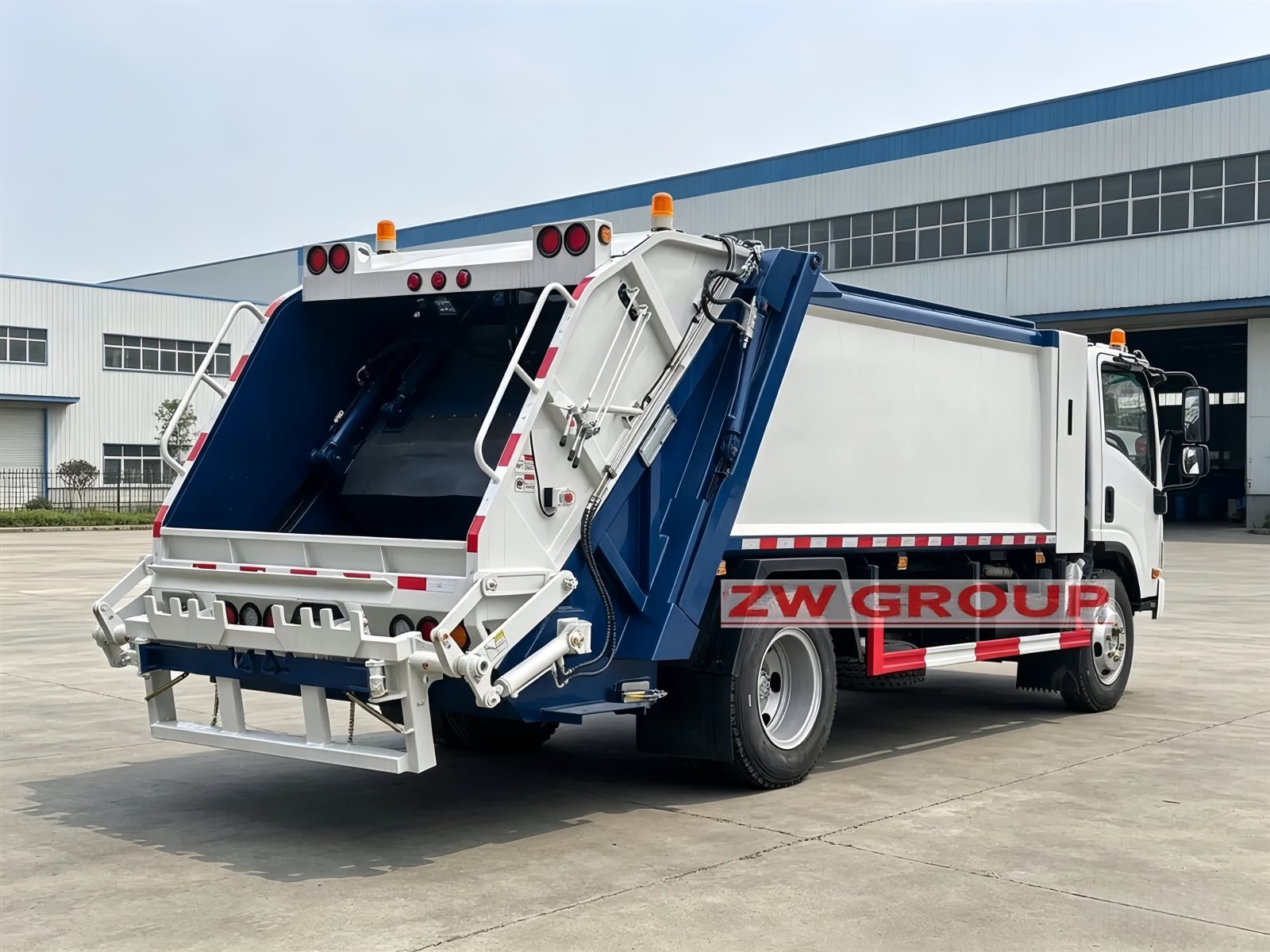

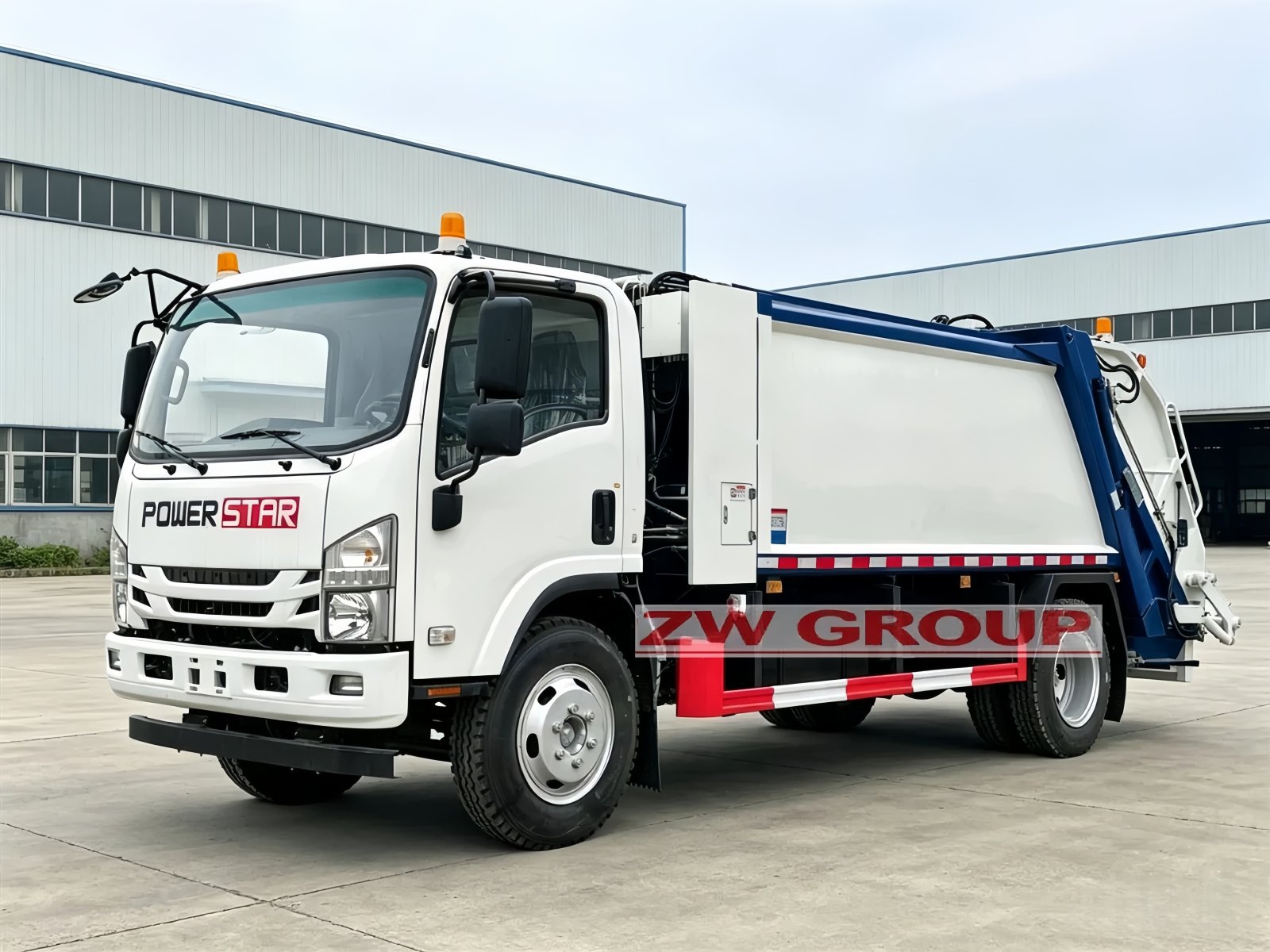

ISUZU 12CBM Garbage compactor truck

Product Overview

The ZW GROUP Isuzu 4x2 12m³ garbage compactor truck is a high-performance sanitation vehicle designed for efficient municipal and residential waste collection. Built on a Qingling 4x2 chassis with a 190HP Euro VI diesel engine, it delivers strong power while meeting strict emission standards.

It features a 12m³ high-strength steel body with a hydraulic compaction system achieving a 2.5:1 ratio, fast loading/unloading cycles, and a fully sealed design to prevent leakage and odor. Equipped with PLC dual control, ABS, and air brake systems, it ensures safe, reliable, and efficient urban waste operation.

Products Specifications

Category	Key Parameter	Technical Specifications
Engine & Fuel	Engine Model	SUZU 4HK1-TCG61 Diesel Engine
	Horsepower & Torque	190 HP
	Emission Standard	Euro 3 / Euro
Chassis & Load	Drive Configuration	4x2
Chassis & Load	Tire Specification	9.00R20 / 10.00R20 All-Steel Wire Radial Tires
Body & Capacity	Compactor Box Volume	12 CBM
	Steel Material &Thickness	High-Tensile Carbon Steel (Q345B) \| Floor: 5mm, Side Walls: 4mm (Anti-deformation)
	Hopper Floor Material	6mm NM400 Wear-Resistant Steel
Performance	Compression Ratio	2.5:1
	Compaction Cycle Time	Single loading cycle ≤25s Ejection discharge time≤35s
	Hydraulic System Pressure	16 MPa – 21 MPa
Control & Anti-Leak	Wastewater Protection	100% Fully Sealed Structure + High-capacity leakage collection tank
Control & Anti-Leak	Bin Compatibility	Universal hydraulic lifter for standard 120L / 240L / 660L / 1100L plastic and steel bins
Shipping Protection	Marine Transit Treatment	100% Full Anti-Corrosion Wax Treatment

—— FAQ

Q： Which countries do you export to?

A：

We export our trucks and trailers to Africa, Southeast Asia, the Middle East, South America, and other international markets. Our products are widely used in countries such as Nigeria, Ghana, Tanzania, Zambia, Kenya, Mozambique, and Congo.

Q： Can you customize the truck according to our requirements?

A：

Yes. We support customization services including truck color, logo, tank capacity, left-hand drive or right-hand drive, optional equipment, axle configuration, and other special requirements.

Q： What is the production lead time?

A：

Normally, the production time is around 20 to 35 working days after receiving the deposit. The exact delivery time depends on the truck model and customization requirements.

Q： Can I visit your factory before placing an order?

A：

Of course. Customers are welcome to visit our factory in China. We can also provide factory videos, production photos, and online video inspections.

Q： Can your trucks work in high-temperature environments?

A：

Yes. Our exported trucks are suitable for high-temperature and harsh working environments commonly found in Africa and the Middle East.

Q： Do you provide spare parts?

A：

Yes. We can provide original spare parts and wearing parts for all exported trucks and trailers. Spare parts support is available for long-term cooperation customers.
