Shacman F3000 Truck Mounted Crane with XCMG

Name: Shacman F3000 Truck Mounted Crane with XCMG
SKU: 0

Get a quote

Brand ：Shacman

Product origin ：Shandong, China

Delivery time ：20-30days

Supply capacity ：100 sets/month

All Categories

Quick Message

Shacman F3000 Truck Mounted Crane with XCMG

Product Description

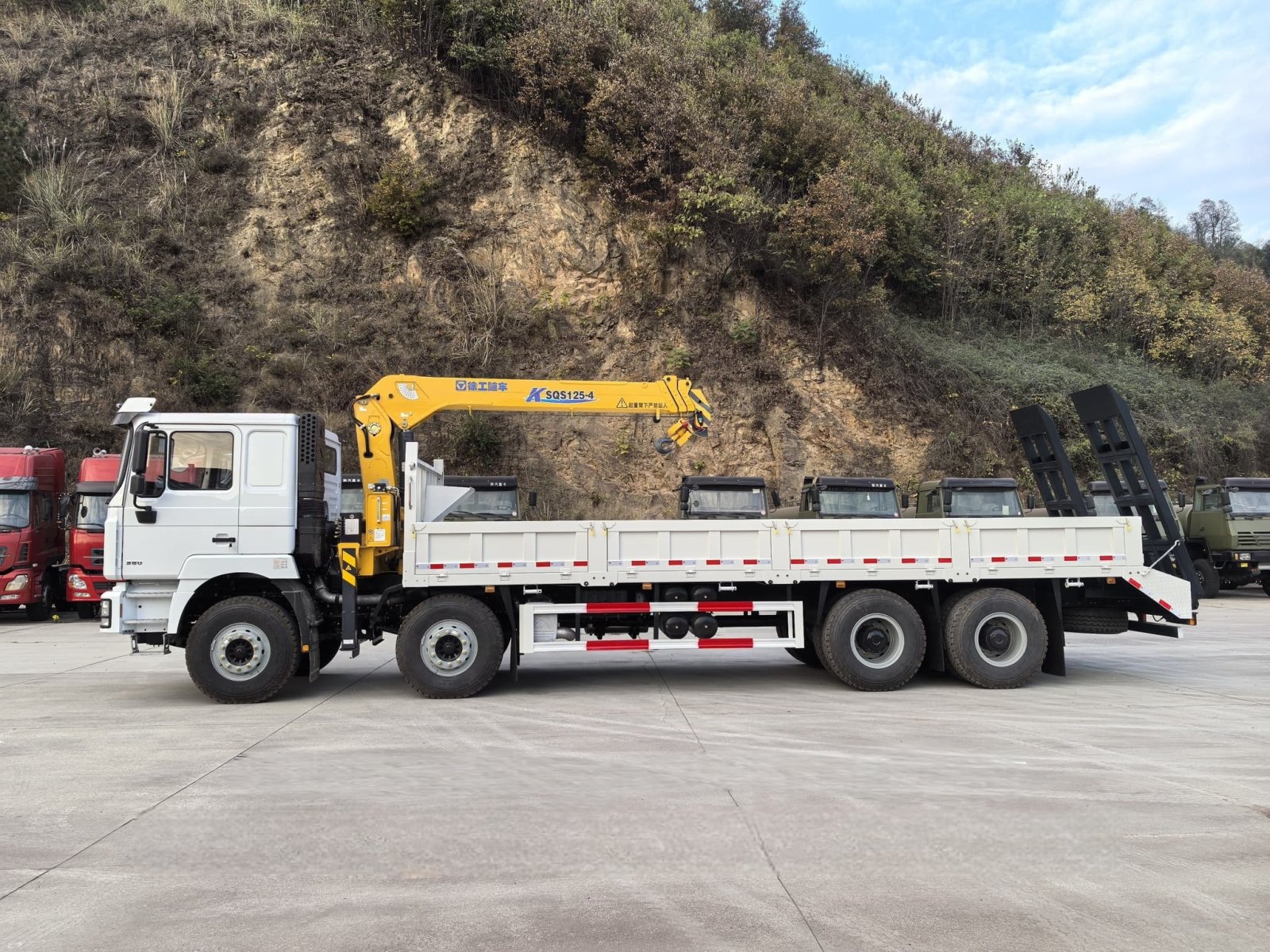

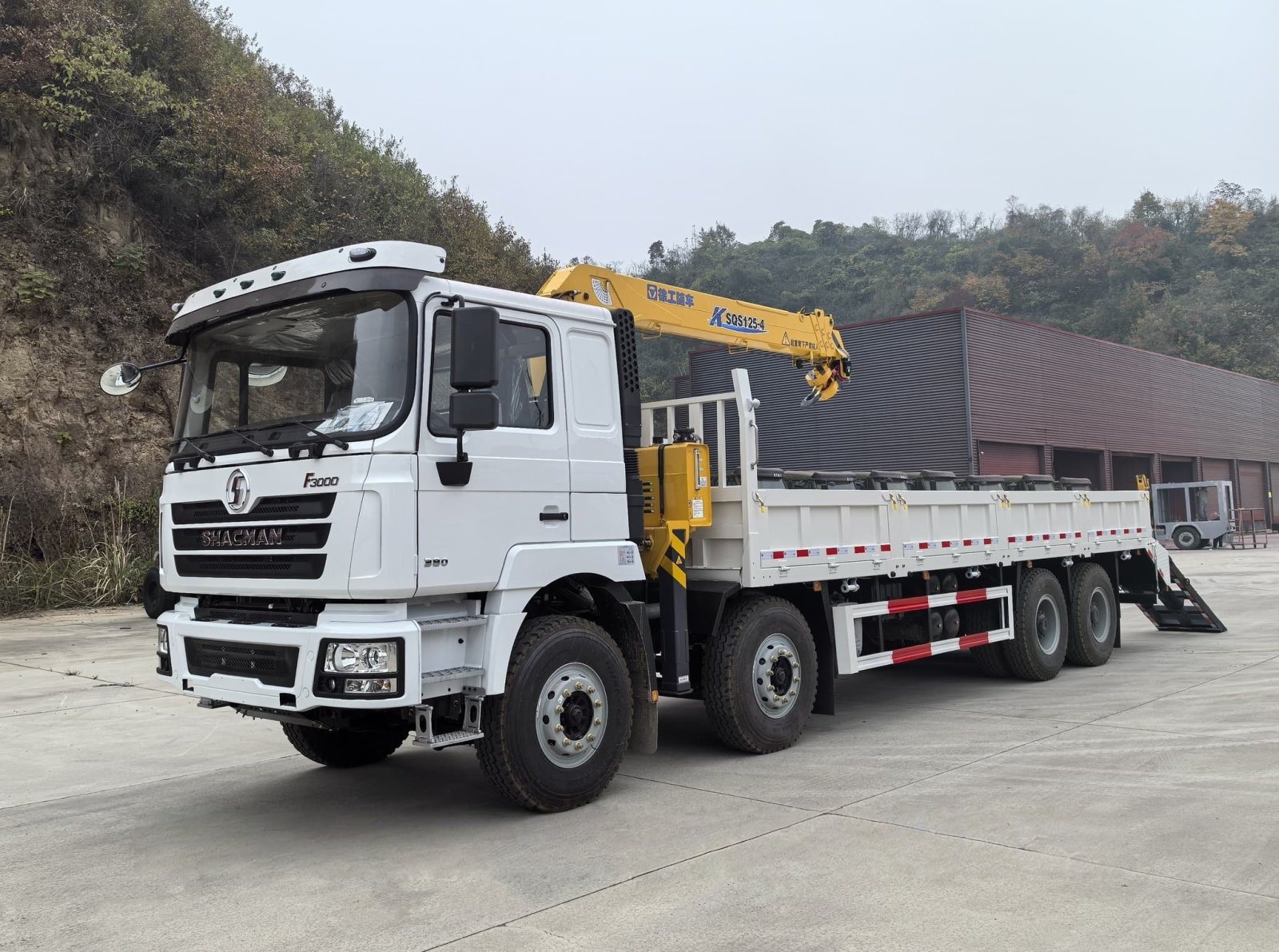

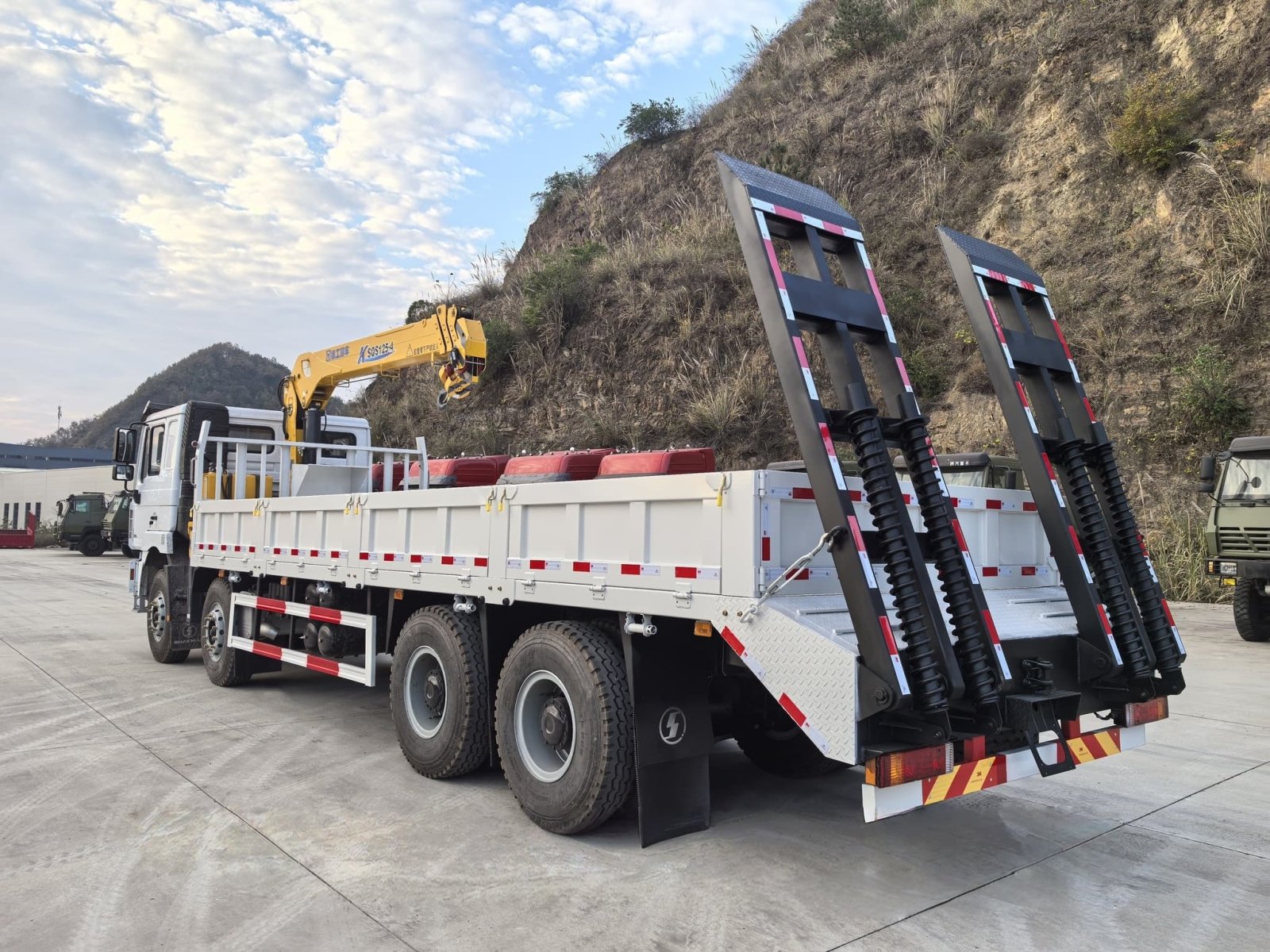

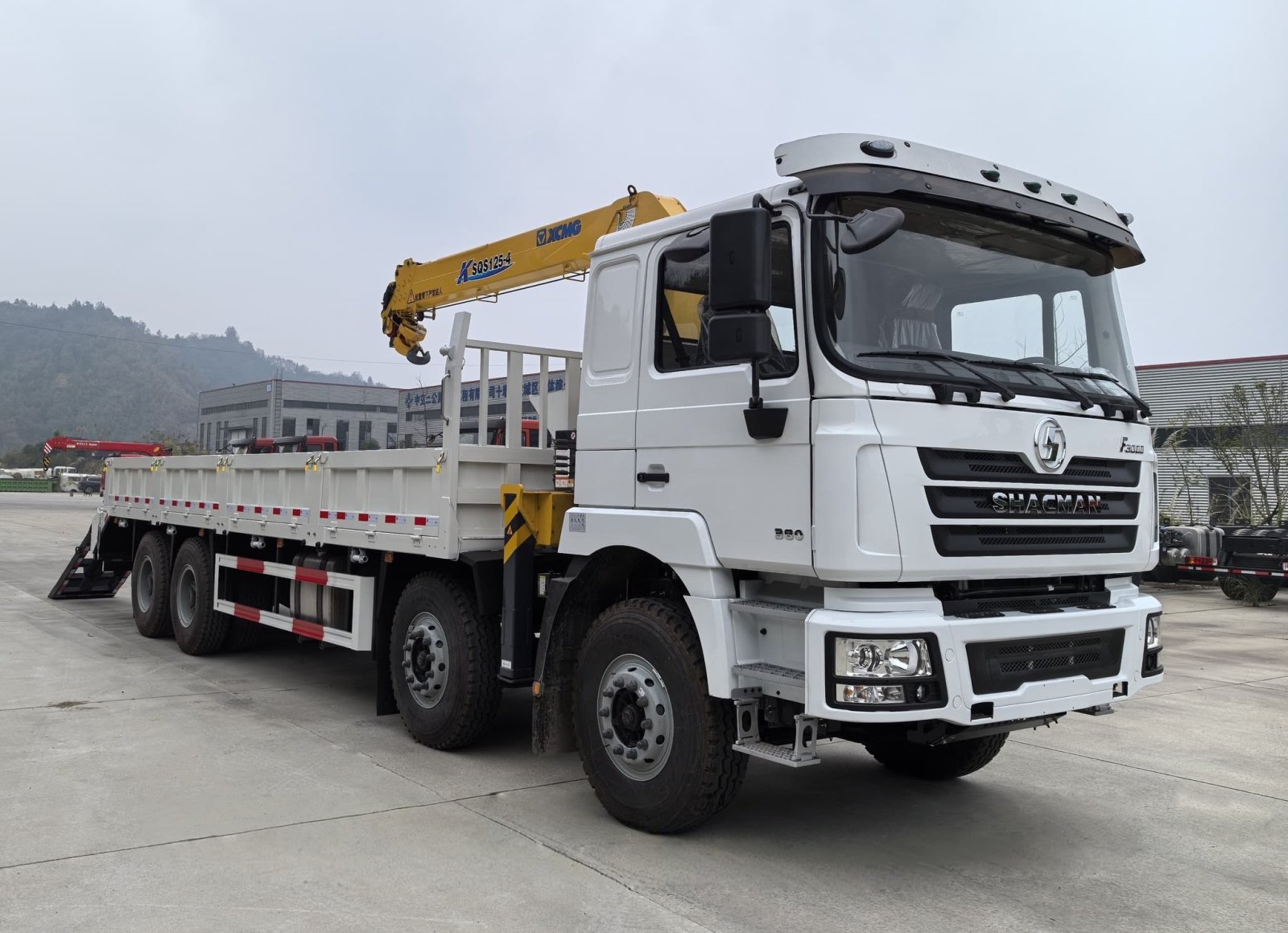

The ZW GROUP Shacman F3000 truck-mounted crane is an integrated heavy-duty vehicle designed for construction, infrastructure projects, and logistics lifting operations. It combines the durable Shacman F3000 chassis with XCMG telescopic crane technology for reliable performance in demanding environments.

Powered by a 380HP Weichai engine and built on a reinforced 300mm frame, it offers strong stability and load capacity during heavy lifting and transport. The XCMG five-section U-shaped boom with dual hydraulic systems ensures smooth and precise lifting operations. With a large cargo bed for transporting heavy machinery and components, it provides an efficient and cost-saving solution for global construction and logistics work.

Technical Specifications

Specification Category	Technical Details & Parameters
Truck Chassis & Dimensions	Shacman F3000 Series Chassis
Engine Model & Power	Weichai Diesel Engine / 225 kW (380 HP)
Gross Vehicle Weight (GVW)	25,000 kg (Total Quality)
Curb Weight / Rated Payload	16,230 kg (Curb Weight) / 8,575 kg (Rated Contained Mass)
Wheelbase & Axle Load	5900 + 1350 mm \| Axle Load: 7,000 kg / 18,000 kg
Tire Configurations	11.00R20 - 18PR (Heavy-Duty Radial Tires)
Cargo Bed Dimensions	8,500 mm × 2,450 mm × 550 mm
Overall Vehicle Dimensions	12,000 mm × 2,550 mm × 3,950 mm \| Max Speed: 90 km/h
Crane Brand & Boom Type	XCMG / 5-Section U-Shaped Telescopic Arm
Max Lifting Torque	30 T·M
Boom Length / Max Lift Height	5.6 meters – 18.8 meters Base Length \| Max Rise Height: 21.8 meters
Slewing Range & Speed	360° Full Continuous Rotation \| Swing Speed: 2.5 rpm
Elevation Range & Footprint	0° to 75° Elevation \| Outrigger Cross-Spacing: 2.5 meters × 5.8 meters
Stabilizer Outriggers	Automatic Hydraulic Legs (Two-Cavity Rear Stabilizers)
Cabin Comfort	F3000 Ergonomic Spacious Cabin with Air Conditioning (AC)

—— FAQ

Q： Which countries do you export to?

A：

We export our trucks and trailers to Africa, Southeast Asia, the Middle East, South America, and other international markets. Our products are widely used in countries such as Nigeria, Ghana, Tanzania, Zambia, Kenya, Mozambique, and Congo.

Q： Can you customize the truck according to our requirements?

A：

Yes. We support customization services including truck color, logo, tank capacity, left-hand drive or right-hand drive, optional equipment, axle configuration, and other special requirements.

Q： What is the production lead time?

A：

Normally, the production time is around 20 to 35 working days after receiving the deposit. The exact delivery time depends on the truck model and customization requirements.

Q： Can I visit your factory before placing an order?

A：

Of course. Customers are welcome to visit our factory in China. We can also provide factory videos, production photos, and online video inspections.

Q： Can your trucks work in high-temperature environments?

A：

Yes. Our exported trucks are suitable for high-temperature and harsh working environments commonly found in Africa and the Middle East.

Q： Do you provide spare parts?

A：

Yes. We can provide original spare parts and wearing parts for all exported trucks and trailers. Spare parts support is available for long-term cooperation customers.
