Folding Boom HOWO NX Truck Crane with Ladder

Product Description

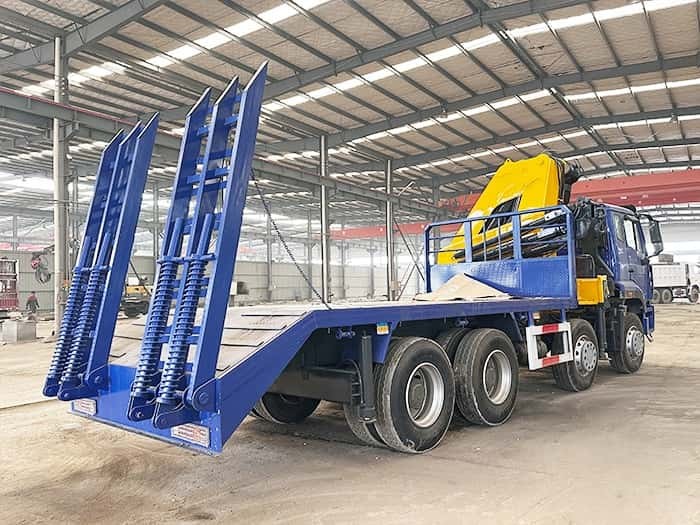

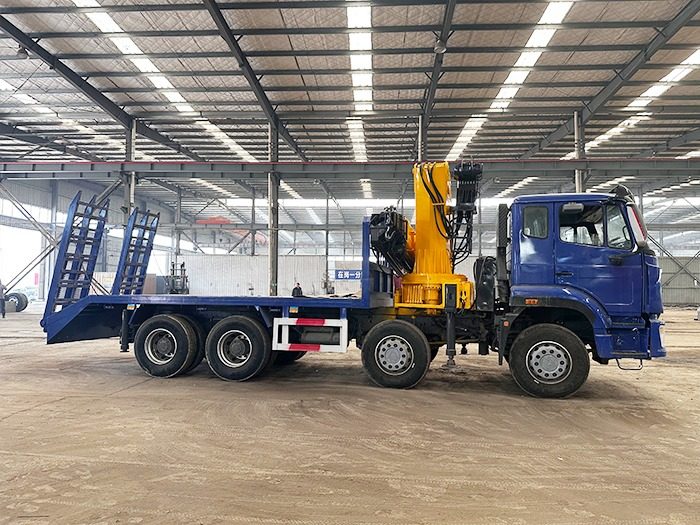

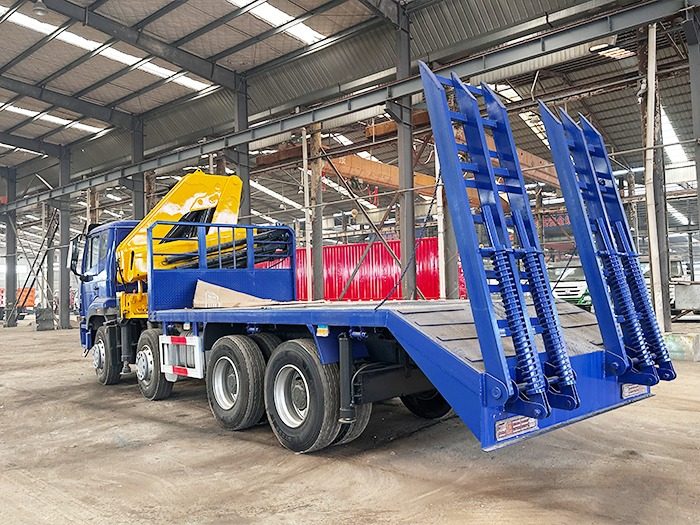

The ZW GROUP Sinotruk HOWO NX 8×4 articulated-boom truck-mounted crane is a heavy-duty two-in-one engineering vehicle designed for confined sites, rugged roads, and mining operations. Built on a reinforced NX 8×4 chassis and powered by a 336HP diesel engine, it delivers stable performance and strong load-bearing capability in demanding off-road conditions.

It features an articulated boom that folds compactly behind the cab for better space utilization and flexible operation in tight or height-restricted areas, along with heavy-duty ladders for safe operator access. Equipped with a high-pressure hydraulic system and overload protection, it supports lifting and transporting 5–20 ton loads such as steel structures, machinery, and containers, making it a cost-effective solution for reducing crane rental needs and improving job site efficiency.

Technical Specifications

Specification	Details
Truck Chassis	SINOTRUK HOWO NX
Drive Type	8×4
Engine Power	336HP
Crane Type	Folding Boom Crane
Lifting Capacity	5 Ton – 20 Ton
Boom Sections	Multi Section Hydraulic
Hydraulic System	High Pressure Hydraulic System
Outriggers	Hydraulic Stabilizing Legs
Ladder System	Integrated Access Ladder
Control System	Manual or Remote Control
Fuel Type	Diesel
Transmission	Manual Transmission
Cab	HOWO NX High Comfort Cab

—— FAQ

Q： Which countries do you export to?

A：

We export our trucks and trailers to Africa, Southeast Asia, the Middle East, South America, and other international markets. Our products are widely used in countries such as Nigeria, Ghana, Tanzania, Zambia, Kenya, Mozambique, and Congo.

Q： Can you customize the truck according to our requirements?

A：

Yes. We support customization services including truck color, logo, tank capacity, left-hand drive or right-hand drive, optional equipment, axle configuration, and other special requirements.

Q： What is the production lead time?

A：

Normally, the production time is around 20 to 35 working days after receiving the deposit. The exact delivery time depends on the truck model and customization requirements.

Q： Can I visit your factory before placing an order?

A：

Of course. Customers are welcome to visit our factory in China. We can also provide factory videos, production photos, and online video inspections.

Q： Can your trucks work in high-temperature environments?

A：

Yes. Our exported trucks are suitable for high-temperature and harsh working environments commonly found in Africa and the Middle East.

Q： Do you provide spare parts?

A：

Yes. We can provide original spare parts and wearing parts for all exported trucks and trailers. Spare parts support is available for long-term cooperation customers.
