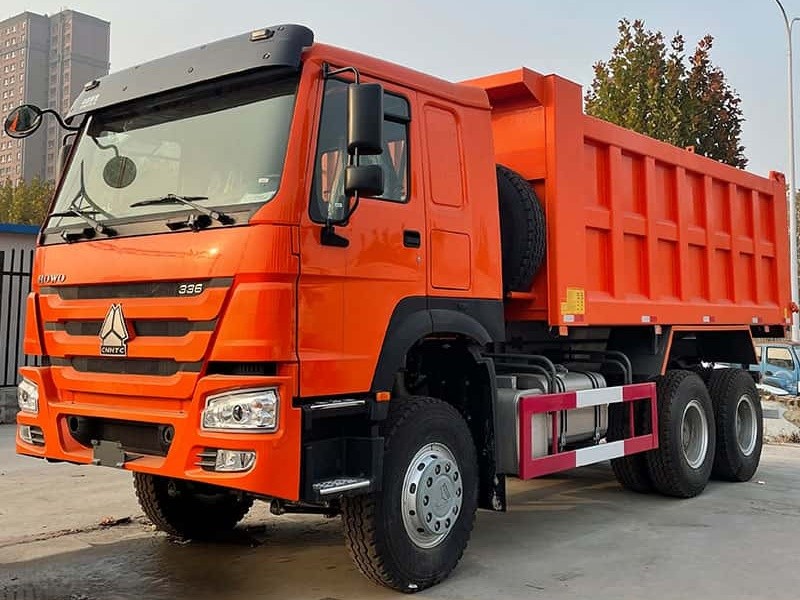

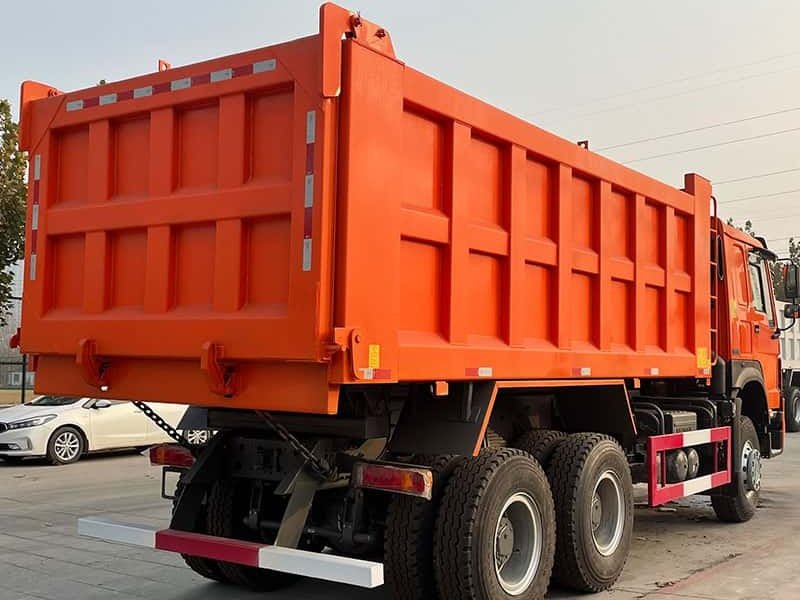

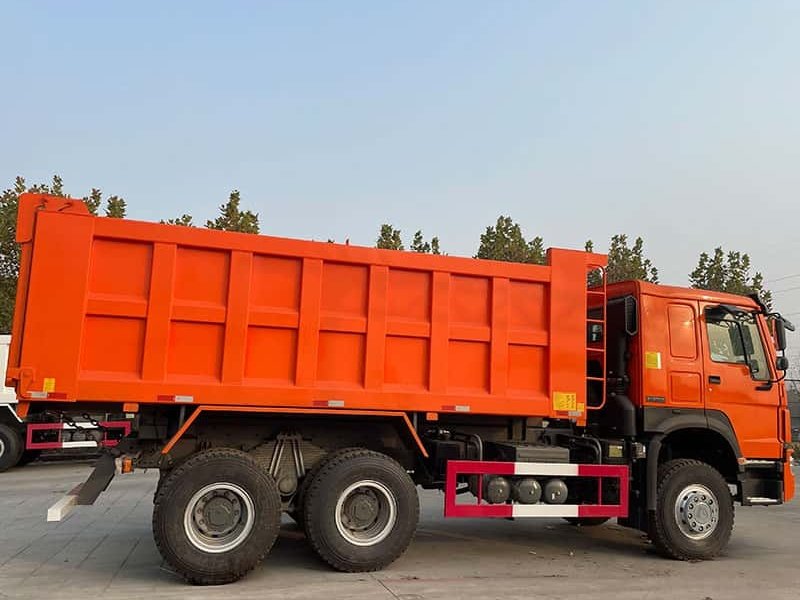

HOWO 6x4 336 Dump Truck

Driving Type

RHD/LHD

Truck Brand

SINOTRUK –HOW

Dimension(LxWxH)(unloaded)(mm)

8545*2496*3170

Cargo body size (L*W*H, mm) (mm)

5600x2300x1500=19.32 m3, bottom:8mm, side:6m

Lift type of Carriage

Middle Lift “F” Style

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3825+1350

Max speed(km/h)

75

Dead weight(kg)

12270

Gross Vechicle wegiht (kg)

25000

Fuel tanker capacity(L)

300

Fuel type

Diesel

Model

CNHTC Brand WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Front axle

HF9 , Steering with double T-cross section beam

Rear axle

HC16, casting axle housing, central double reduction with differential locks between axles and wheels

Color

According to customer’s requirements

Cab

HW76 cab, (one sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
